Sub-meter
The sub-meters collect the following parameters of the circuits with 5-minute sampling:
Phase by phase
Voltage and current values
Effective, passive and apparent performances
Performance factors
Cumulated
Performance and consumption values
Frequency
Two-way energy measurement
![Estima](https://portal.cubilog.com/wp-content/uploads/2024/03/meter-895x1024.jpeg)
![modbus-organization-inc-vector-logo](https://portal.cubilog.com/wp-content/uploads/2024/03/modbus-organization-inc-vector-logo-768x427.png)
Data collecting
The data collected by the submeters are sent to our self-developed data collection module via RS485 Modbus protocol.
The data collectors have their own data communication card, which is part of the service. Our tool manages the collection and transmission of data.
In the event that the Internet connection is interrupted for some reason, the data collector can store and transmit the collected data upon the next connection. Your measurement data cannot be lost!
Implementation of sub-measurement

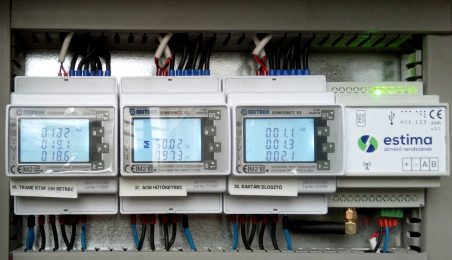

The solution works by using three-phase current transformer submeters and an additional data collection device. Our own installation team installs the devices in the existing distribution cabinet or in a separate distribution box.
![estima mero estima mero](https://portal.cubilog.com/wp-content/uploads/elementor/thumbs/Cubilog_kep3_1200x900_2-1-qjqua56gi7r6rzlrfhhbw6wvn4pgp64his0l1u5vcw.jpg)
Data storage
Always available and secure
The data collected from the submeters by the field data collectors is sent to our cloud-based data storage system via a closed Internet connection, where we process, securely store and archive the data. Third parties cannot access the data.
Management and monitoring software
Management
Remote reading, shutdown and consumption limitation
Add sub-meter
Monitoring
Customizable dashboards
Report and function access control
Energy distribution, map and map of current values
Freely adjustable filters and views
Software
Available from a browser regardless of platform
Customizable, user-friendly interface
Continuous development
Access management
Add and delete users
Report and function access control
User activity logging
Alerts
Configurable alarms
SMS/Email format
Logging of alarms
Exporting
- PDF, Excel, CSV export
Timed export sent by email
Adjustable data content
